Instrument Committee: Prof. Tan, Chih-Shan
(TEL：03-5712121-54146)
(Mail：cstan@nycu.edu.tw)
|
Information:

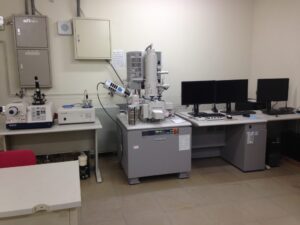

1.Brand Model: Hitachi SU-8010
2.Purchase Date: 2013/10
3.Seat: Engineering Building 6, 212R (TEL：55337)
4.Services: SEM/ EDS
5. Specifications:
(1). Electron Source：Cathode Electronic Gun.
(2). Voltage：0.1kV~30kV.
(3). Sample Size：50mm diameter x 50mm diameter.
(4). Resolution：10A° (at 15kV) or 13A° (at 1kV).
(5). 8hundred thousand’s magnification (Good Image : hundred thousand’s magnification).
(6). Second Electron Resolution : 1.0nm(15kV).
(7). EDS (Be4~U92).
Already have instrument use authority, must go to following website:
1.The Instruments Information System (Get Serial number)
2.Machine Reservation System(Reservation Use period)
Original Equipment Manufacturer: SEM SU-8010 Original Equipment Manufacturer
Charging Method:
1.“Ministry of Science and Technology” Project Expense:
| School Organization | Research Organization | Profit-Making Enterprise | |
|
Foundry fee (NTD/3hrs)
|
900 | 900 | 900 |
| Startup fee (NTD/hr) | 250 | 450 | 550 |
| Sample surface coating (NTD/minute) | 50 | 60 | 80 |
| EDS (NTD/Piece) | 50 | 60 | 80 |
| Grinding machine ( Plane)(NTD/Piece) | 50 | 80 | 100 |
| Grinding machin (Side)(NTD/Piece) | 350 NTD/2hrs | 550 NTD/Piece | 650 NTD/Piece |
2.Not “Ministry of Science and Technology” Project Expense:
| School Organization | Research Organization | Profit-Making Enterprise | |
| Foundry fee (NTD/3hrs) | 900 | 900 | 900 |
| Startup fee (NTD/hr) | 2500 | 4500 | 5500 |
| Sample surface coating (NTD/minute) | 500 | 600 | 800 |
| EDS (NTD/Piece) | 500 | 600 | 800 |
| Grinding machine ( Plane)(NTD/Piece) | 500 | 800 | 1000 |
| Grinding machin (Side)(NTD/Piece) | 3500 NTD/2hrs | 5500 NTD/Piece | 6500 NTD/Piece |
Appeal phone:
1.TEL：03-5712121 ext.31534、31248 / 03-5131534
2.TEL：03-5712121 ext.31775 / 03-5731775
3.Dedicated telephone：03-6116690
